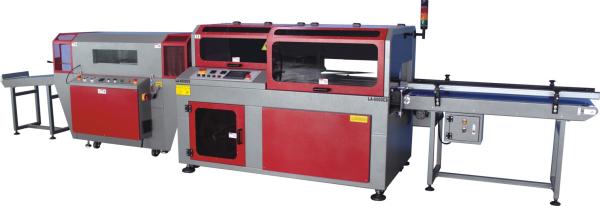

Fully Automatic L Type Shrink Packing Machine Film Tunnel Sealing Machine

Product Categories
Shenzhen Ouya Industry Co., Ltd.
Contact Now

Fully Automatic L Type Shrink Packing Machine Film Tunnel Sealing Machine

  • 1
  • 2
  • 3

Place of Origin : Guangdong, China

Certification : CE

Packaging Details : standard export wooden case

Supply Ability : 20 Unit/Units per Month

Price : $10,000.00 - $15,000.00/units

Type : Wrapping Machine

Applicable Industries : Manufacturing Plant, Food & Beverage Factory

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location : United States, Italy

Showroom Location : United States, Italy

Application : Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles

Packaging Type : Film

Packaging Material : Plastic, Wood

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 1ph/220V, 50Hz

Dimension(L*W*H) : 2040*1550*1650mm

Weight : 610 KG

After-sales Service Provided : Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service

Key Selling Points : Automatic

Machinery Test Report : Provided

Core Components : PLC, Pressure vessel, Gear, Motor, Engine, Bearing, Gearbox, Pump

Contact Now

Specification

item

value

Type

Wrapping Machine

Applicable Industries

Manufacturing Plant, Food & Beverage Factory

After Warranty Service

Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location

United States, Italy

Showroom Location

United States, Italy

Condition

New

Application

Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles

Packaging Type

Film

Packaging Material

Plastic, Wood

Automatic Grade

Automatic

Driven Type

Electric

Voltage

1ph/220V, 50Hz

Place of Origin

China

Guangdong

Dimension(L*W*H)

2040*1550*1650mm

Weight

610KG

Certification

CE

After-sales Service Provided

Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service

Warranty

1 Year

Key Selling Points

Automatic

Machinery Test Report

Provided

Video outgoing-inspection

Provided

Warranty of core components

1 Year

Core Components

PLC, Pressure vessel, Gear, Motor, Engine, Bearing, Gearbox, Pump

Packing material

POF Shrink Film

Manufacturing Technique

Machine allows a simple and precise control of all the machine operations, such as:
1. Possibility of storing up to 10 different operation programs
2. Automatic control of the sealing bar height (Oniy for CS modei)
3. Double adjustment oflhe sealing blade temperature, both lengthways and broadways
4. Possibility of packing single packs or muitipacks
5. Speed of conveyors electronically adjustabie from the control panel

Product Paramenters

1. Motorized center seal system as standard (Only for CS model)
2. Piece counter, batch production setting possible
3. Measurement pack length
4. Real-time output
5. Control of irregular packs
6. Reduced power consumption
7. Packing film requirement: Polyolefin, polyethylene, micro perforated film, thickness from 10 to 50 u
8. Compliance with CE regulations

Model No.

LA-6000 / LA-6000CS

LA-8000/LA-8000CS

Power supply/installed power

220 – 240 V,1PH-N PE, 50/60 Hz/ 3200 W

Compressed air pressurel Compressed air consumption

5 bar, 75L per min

6 bar, 90L per min

Sealing bar Dimension

610 x 480 mm

860 x 670 mm

Maximum pack height

200 mm for center seal/120mm for no center seal

250 mm for center seal/150mm for no center seal

Speed of conveyors

10 – 30 M/min

Average output per hour

600-2400

600-1800

Maximum size of film reel

600-300mmφ

Machine size (LxWxH)(mm)

2040x1610x1240

2580x1870x1300

Packed machine size (LxWxH)(mm)

2160x1730x1490

2700x1990x1550

Machine weight (NW/GW)(Kg)

610/850

850/1100

Fully Automatic L Type Shrink Packing Machine Film Tunnel Sealing Machine
